+23-
Sleeps 5
-
2 Slides
-
Bunk Over CabOutdoor Entertainment
-
26ft Long

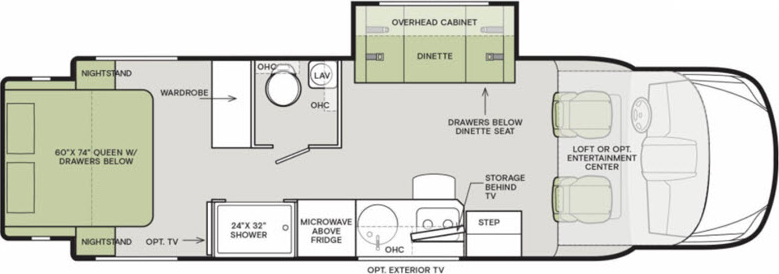

25 SW Floorplan
Specifications
| Sleeps | 5 | Slides | 2 |
| Length | 25 ft 8 in | Ext Width | 7 ft 6 in |
| Ext Height | 11 ft 4 in | Int Height | 6 ft 8 in |
| Hitch Weight | 5000 lbs | GVWR | 11030 lbs |
| Fresh Water Capacity | 32 gals | Grey Water Capacity | 33 gals |
| Black Water Capacity | 28 gals | Furnace BTU | 30000 btu |
| Fuel Type | Diesel | Miles | 19525 |
| Engine | 3.0L V6 Turbo Diesel | Chassis | Mercedes |
| Horsepower | 188 hp | Fuel Capacity | 24.5 gals |
| Wheelbase | 170.3 in | Number Of Bunks | 1 |
| Available Beds | Queen | Torque | 325 ft-lb |
| Refrigerator Type | Double Door | Refrigerator Size | 6.5 cu ft |
| Convection Cooking | Yes | Cooktop Burners | 2 |
| Shower Size | 24" x 32" | Number of Awnings | 1 |
| Axle Weight Front | 4410 lbs | Axle Weight Rear | 7720 lbs |
| LP Tank Capacity | 12 gals | Water Heater Type | Truma Comfort Plus Instant |
| AC BTU | 13500 btu | Basement Storage | 54 cu. ft. |
| TV Info | LR TV | Awning Info | Girard 16' Wind Sensor with Speakers |
| Gross Combined Weight | 15250 lbs | Shower Type | Standard |
| Electrical Service | 30 amp | VIN | W1X8E33Y8LN093994 |
Description
Tiffin Motorhomes Wayfarer Class C diesel motorhome 25 SW highlights:
- Rear Bedroom
- Queen Bed Slide
- Drawers Below Dinette
- Split Bath
- Bunk Over Cab
Get ready to travel in comfort with your favorite person in this perfect couples coach! Yet you can invite overnight guests to join you thanks to the extra sleeping space on the bunk over cab and the dinette slide out with drawers below the dinette seat. However, you might decide to choose the option of adding an entertainment center over the cab which would replace the bunk. The galley kitchen has everything the cook will need including a convection microwave above the fridge. The split bathroom is convenient when two are trying to get ready at once, and the rear bedroom gives you a unique slide out queen bed that provides more floor space to walk to the wardrobe and nightstands. There is a exterior TV option as well, take a look!
With each Wayfarer Class C diesel motorhome by Tiffin Motorhomes you will enjoy the ride as much as the destination with the ergonomic heated seats, the 10.25" Mercedes-Benz User Experience (MBUX) multimedia system with in-dash navigation as well as the Mercedes chassis and turbo diesel engine offering high-performance. The interior offers plenty of storage for clothing, linens and such as well as LED reading lights, inverted outlets in the bedroom for a CPAP machine, kitchen over and under-the-counter lighting, plus more! Take a Wayfarer on the road for any reason you want, either maximum spatial efficiency, ample storage and/or luxury features!
Features
Standard Features (2021)
General Construction
Roof
- One-piece, moisture resistant molded fiberglass roof cap provides insulation and strength and prevents water intrusion
- AC condensation drainage system that runs internally through the roof insulation & down through the rear cap, redirecting water underneath the motorhome
Sidewall
- Gel-coat fiberglass outside wall panel
- High-performance thermal insulation
- Durable, yet lightweight, tubular aluminum wall skeleton
Mercedes Chassis
- 3.0 6-cylinder Turbo Diesel Engine with 7-speed Automatic Tip Shift Speed Transmission 188 HP/325 lb Torque
- Attention Assist
- Multi-function Steering with Trip Computer
- Light and Rain Sensor
- Heated/Electric Adjustable Mirrors
- Windshield with Filter Brand
- Stainless Steel Wheel Liners
- Overhead Control Panel with Reading Lamps
- Improved Lane Keeping Assist
- Collision Prevention Assist
- Load Adaptive Electronic Stability (ESP)
- High Beam Assist
- 5,000 lb Rated Hitch with 500 lb Vertical Tongue Weight and 7-pin Connector 1
- SumoSprings Ride Assist System
- BigFoot Hydraulic Leveling System
- Aluminum Wheels (Optional)
Plumbing and Electrical
- Truma Comfort Plus Instant Hot Water Heater
- Spyder Multiplex Coach Control System
- HD TV Antenna with Amplifier
- Two 12 V House Batteries (Group 27/180 Amp Hours)
- 30 Amp 110 V House Service
- Power Cord – 30' Permanently Attached
- 3.2 kw Diesel Generator
- 1000 Watt Inverter Pure Sine
- 110 V and 12 V House Load Center with Power Converter
- HD Over-the-air TV Antenna
- Prep for Satellite
- Pre-wired for Solar Panels
- 13.5 K Mid Air Conditioner
- Park Cable and Ground Satellite Hook-up
- Wall-mount Thermostat with Built-in Temperature Sensor
- 30 K BTU Propane Ducted Furnace
- 12 V Engineered Wiring Harnesses
- 15 K Mid Air Conditioner with Heat Pump (Optional)
- Complete Solar System with 190 Watt Solar Panel (Optional)
- 2000 Watt Inverter Pure Sine (Optional)
- Wi-Fi Ranger (Optional)
- In-motion Satellite (Optional)
- Lithium Battery Drop-in Solution (Optional)
Exterior
- Girard 16' Wind Sensor Awning with Speakers
- Automatic Lights in Exterior Compartment Doors
- Entrance Door Assist Handle
Interior
- Separate Speaker Zones
- Stereo System
- LED Lights
- Privacy Shades
- 2 Captain’s Chair Lounge Cushions
- Soft Vinyl Ceiling
- Combination Carbon Monoxide and Propane Detector
- Fan-Tastic Vent Fan
- Central Vacuum System with Retractable Hose (Optional)
Handcrafted Cabinetry (Optional)
- Russet 4
- Linen 4
- Acier Grey/Chateau 5
Fabric Suites (Optional)
- Oasis
- Soho
- Champagne
- Sterling
Wallcovering
- Reston Ivory
Driver's Compartment
- USB Port
- Radio
- Back-up Camera
- Power Cab Door Locks
- Power Cab Door Windows
- Adaptive Cruise Control
- Tilt Telescoping Steering Wheel
- Sun Visors
- 12 V Power Outlet
- Central Cab Locking with 2 Remotes
- Keyless Start
- Windshield Shades
- Black Leather Seats
- Heated Seats
- Leather Wrapped Steering Wheel Cover
- Power Adjustable Driver and Passenger Seat
- Swivel Seat Base for Both Driver and Passenger Seat
- Driver and Passenger Door Courtesy Lights
- 10.25" MBUX Infotainment System with In-dash Nav
- Chassis/House Battery Radio Power Switch
- Traffic Sign Assist
- Side-view Cameras (Optional)
Living Area
- House Radio/DVD/Bluetooth
- Flush Mount Windows
- Overhead Bunk
- Living Area TV
- Face-to-face Booth Dinette on Driver Side (25 RW, 25SW)
- 70" Sofa w/Tri-fold Hide-a-bed (54" x 74") on Driver Side (Optional 25RW, 25 SW)
- 50" Sofa w/Tri-fold Hide-a-bed (42" x 74") on Driver Side (25 TW, 25 LW)
- 68" Electric Theater Seats on Driver Side (Optional 25 RW, 25 SW)
- 50" Electric Theater Seats (No Cupholders) on Driver Side (Optional 25 TW, 25 LW)
- Overhead Entertainment Center (Optional)
Kitchen
- LP Cooktop with Built-in Cover
- Convection Microwave
- Single Bowl Sink
- Designer Faucet
- Over-the-counter Lighting
- Under-the-counter Lighting
- Fire Extinguisher
- 110 V Outlet
- Countertop Extension
- 12 V 5 Cubic Foot Refrigerator (25 TW, 25 LW)
- 12 V 6.5 Cubic Foot Refrigerator (25 RW, 25 SW)
- Gas/Electric 5 Cubic Foot Refrigerator (Optional 25 TW, 25 LW)
- Gas/Electric 6.5 Cubic Foot Refrigerator (Optional 25 RW, 25 SW)
Bedroom
- Inverted Outlets in Bedroom for CPAP Machine
- USB Port with 110 V Plug
- Wardrobe
- LED Reading Lights
- Nightstands (N/A 25 RW)
- Bedroom TV (25 RW) (Optional 25 TW, 25 LW, 25 SW)
- Two Twin Mattresses (32" x 76") Converts into King Bed (86" x 76") (25 TW)
- Two Twin Mattresses (32" x 76") Pop-up Closet Storage on Driver Side (25 LW)
- Queen Mattress (60" x 74") (25 SW)
Bathroom
- Vanity Storage
- Porcelain Vessel Sink with Chrome Faucet
- Fan-Tastic Vent Fan
- One-piece Fiberglass Shower (30" x 36") with Skylight (25 RW, 25 TW)
- One-piece Fiberglass Shower (24" x 32") with Skylight (25 TW, 25 LW, 25 SW)
See us for a complete list of features and available options.
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
