- List Price: $49,900
-
Sleeps 3
-
3 Slides
-
Rear Living AreaKitchen Island
-
38ft Long
-
10,660 lbs
-
Havana

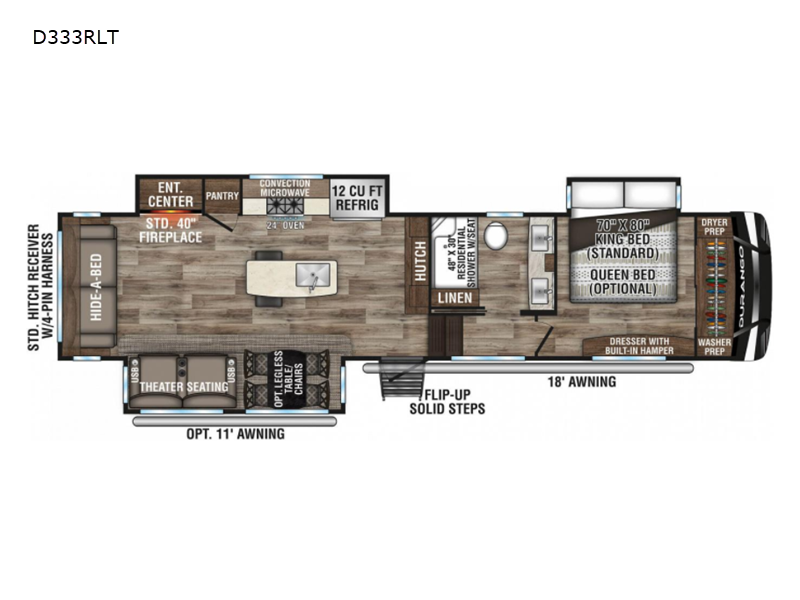

D333RLT Floorplan
Specifications
Sleeps | 3 | Slides | 3 |
Length | 37 ft 10 in | Ext Width | 8 ft |
Ext Height | 12 ft 10 in | Interior Color | Havana |
Exterior Color | Polar White | Hitch Weight | 2030 lbs |
GVWR | 12995 lbs | Dry Weight | 10660 lbs |
Cargo Capacity | 2265 lbs | Fresh Water Capacity | 76 gals |
Grey Water Capacity | 53 gals | Black Water Capacity | 53 gals |
Tire Size | 16" | Furnace BTU | 35000 btu |
Available Beds | King | Refrigerator Type | Gas/Electric |
Refrigerator Size | 12 cu ft | Convection Cooking | Yes |
Cooktop Burners | 4 | Number of Awnings | 1 |
Axle Weight | 8700 lbs | LP Tank Capacity | 30 lbs |
Water Heater Capacity | 12 gal | Water Heater Type | Gas/Electric DSI |
AC BTU | 15000 btu | TV Info | LR LED |
Awning Info | 18' Power w/LED Light Strip | Axle Count | 2 |
Washer/Dryer Available | Yes | Number of LP Tanks | 2 |
Shower Type | Shower w/Seat | Electrical Service | 50 amp |
VIN | 4EZFD3929M6023296 |
Description
KZ Durango fifth wheel D333RLT highlights:
- Dual Sink Vanity
- Kitchen Island
- Hide-A-Bed Sofa
- Theater Seating
- USB Charging Station
- Towing Receiver Hitch
Imagine you and your spouse staying at different state parks or RV resorts and on occasion your grandkids join you! Everyone can watch the LED TV while reclining in a theater seat with heat and massage features and on the hide-a-bed sofa while the cook prepares a meal at the kitchen island with a trash can under the sink and two stools. The near by hutch offers a great place to display picture frames and decor or serve meals from, and you will surely make lots of food with all the appliances provided including the 12 cu. ft. refrigerator and large pantry. When you need to get cleaned up, the residential shower with a seat and dual sinks make it easy. And the bathroom pocket door saves space inside to easily get dressed for the day. When it's time to retire for the night, the front bedroom offers a king bed slide out, a dresser, and the front wall wardrobe and space for a washer and dryer if you choose that option.
With any KZ Durango fifth wheel you will have the lightest high-profile, wide body, luxury fifth wheel in the industry with six-sided aluminum framing, the All Weather Insulation package which includes a heated, insulated and enclosed underbelly to travel during any climate, and Tufflex roofing material that is flexible, puncture resistant, and reflective. Each model features a fully-vented attic system with two attic vents providing vital escape routes for unwanted moisture, and the Durango Towing package which includes a 2" towing receiver hitch with 4-pin wire harness connection, a 3,000 lb. tow rating, and 300 lb. hitch rating. The interior includes features such as a Serta Comfort foam king bed, overhead storage with decorative shelving, a residential one-piece fiberglass shower stall with built-in seat and glass doors, a 24" oven with four-burner gas range and 30" convection microwave, plus many more features you will want to have. Make your choice today!
- KZ Advantage Package
- KZ Convenience Package
- 32" Bedroom LED TV
- F/S Table & 4 Chairs IPO Dinette
- Power Vent Fan - Bathroom
- 2nd 15,000 BTU A/C Ducted
- 2nd LED Lighted Power Awning
Features
Standard Features (2021)
Construction
- Steel Powder Coated I-Beam w/Drop-Frame Pass-Thru Storage
- R-11 2" Block Foam Bonded Sidewalls w/EGS Metal Backing Strips (to support all int. cabinets)
- Lamilux® Gelcoat Fiberglass
- Fully-Insulated Sliderooms
- 1-Piece, Seamless, Walk-on, Tufflex Roofing Material w/20-Year Warranty
- 5/8" Tongue & Groove, Screwed & Glued Plywood Floor Decking
- Fully-Vented Attic System
- Completely Heated Water System
- Pex® In-Floor Heated Waterlines & Kitchen Gray Pipes (all waterlines & drain lines are located above all insulation)
- Fully Heated & Enclosed Underbelly
- Radius Front Cap (for increased turning radius on short bed trucks)
- Extra-Reinforced Heavy-Duty Front Fiberglass Cap
- All Weather Insulation PKG (upgrades roof, floor, ceiling, endcaps & tanks to R-38)
Exterior
- Dexter® Axles w/Self Adjusting Brakes & Height Adjusting Hangers
- 8-Lug Heavy-Duty Aluminum Rims w/16" E-Range Nitrogen-Filled Radial Tires
- 100% Exterior LED Running Lights & Taillights
- LED Front Docking Light & Sewer Hookup Light
- Electric Power Awning w/LED Light Strip
- (2) 30 lb. Propane Bottles on Same Side of Coach for Easy Access
- Side-Mounted Sealed Battery Compartment
- Partially Painted Front Cap
- 50 AMP Service w/Marine Power Cord
- 15,000 BTU Ducted Roof A/C w/Pre-Wire for Optional 13,500 BTU Bedroom A/C
- 3" x 14" Foam-Core In-Floor Straight-Line Heating System w/35,000 BTU Furnace
- Deluxe Heated Water Convenience Center (incl. black tank flush, power fresh tank water fill, winterizing system, outside shower)
- Fully-Finished, Heated & Sealed Basement Storage Compartment
- 12 GAL Gas/Electric/DSI Hot Water Heater
- Swing-Away Assist Grab Handle
- Roof Ladder
- No-Slide Rubberized Basement Flooring
- Dual Lock Basement Storage Slam Latches
- Satellite Pre-Wire (roof & ground)
- Outside Speakers & Pre-Wire for Exterior TV
- Full-Perimeter Rain Gutter System (incl. rear & additional gutters over sliderooms)
- LP Quick Connect
- Under-Mount Spare Tire
Living Room/Kitchen
- Solid Surface Kitchen Countertops & Sink Covers w/Large Handholds
- Residential Stainless Steel Sink
- Pullout High Arching Faucet
- Storage Shelf under Kitchen Sink
- Heavy-Duty 100 LB Drawer Glides on Every Drawer
- Baltic Birch Drawer Boxes
- Kitchen Window (most models)
- All-Wood Lumber Core Screwed Cabinets w/Hardwood Doors
- 5" Brushed Nickel Cabinet Hardware
- 3/8" Re-Bond Carpet Pad w/22 OZ Residential Carpet Throughout
- XL Toggle Light Switches
- Large Ceiling Crown Molding
- All LED Ceiling & Cabinet Lights w/Multiple On/Off Switches
- Deluxe Residential-Style Furniture
- HD Flat Panel TV w/Swing Arm Bracket & Storage behind TV (most models)
- Adjustable Pantry Shelves (where applicable)
- All Kitchen OH Cabinets incl. Shelf & Extra-Tall Slide Lips
- 4" High Density Foam Cushions on all Booth Dinettes
- Ceiling Fan (where applicable)
Bathroom/Bedroom
- Residential One-Piece Fiberglass Shower Stall w/Built-In Seat & Glass Doors
- Shower Skylight
- Porcelain Foot-Flush Toilet
- All LED Lights in Bed & Bath w/Multiple Large Switches
- Vent Fan in all Baths
- Large Linen Closet in Every Bathroom
- One-Level, Full-Height Bedrooms
- Padded Headboard w/Power Outlet Near Bed
- XL Under-Bed Storage
- Luxurious Bedspread
- Dual Drawers, Large Hanging Space
- Washer & Dryer Prep in Front Closet
- Bedroom TV Pre-Wire
Options
Exterior
- 2nd A/C Ducted (13,500 BTU)
- 2nd A/C Ducted (13,5000 BTU) Mach 10 Low Pro
- Dual Pane Windows (frameless)
- Wireless Backup Camera System - Observation
- “Off the Grid” Solar Package by Xantrex (220W solar panel, 30A MPPT solar charge controller w/MPPT remote panel, 2,000W True Sine Wave Inverter w/all outlets "hot")*
- Xantrex 125AH Lithium Battery w/Bluetooth App Controls (monitors charge rate, discharge rate, current level, battery conditions, temperature & includes built-in safety shut down at 10%)
- Roto Flex Rubberized Pin Box
- Generator Prep (includes start/stop harness)
- 5.0KW LP Onan Generator (requires prep)
- 2nd LED Lighted Power Awning (D301RLT, D333RLT, D343MBQ, D348BHF)
- 32" Exterior TV w/Bracket
Interior
- 32" Bedroom LED TV
- F/S Dinette Table & 4 Chairs IPO Dinette
- Theater Seating w/Heat & Massage Features IPO Tri-Fold HAB (D348BHF)
- House Residential Refrigerator w/2,000W Inverter (18 CU FT) IPO 12 CU FT Gas/Electric Refrigerator (N/A D348BHF & CSA option)
- Power Vent Fan in Bathroom
- Serta Comfort Foam 60" x 80" Queen Mattress
- Central Vac System
- Hide-A-Bed Sofa IPO Lower Bunk (D348BHF only)
*Cannot get House Residential Refrigerator w/“Off the Grid” Solar Package
KZ Advantage Package (Mandatory)
Exterior
- 4 Point Auto Electric Leveling
- Polar White Gelcoat Exterior Fiberglass
- Painted Fiberglass Front Cap
- 5-Sided Aluminum Framing
- Flip-Up Entry Steps (main entry)
- 50 AMP Service w/2nd A/C Prep
- 15K Ducted A/C
- 5/8" Tongue & Groove Plywood Floor
- Key-Alike for Baggage & Entry Doors
- Friction Hinge Entry Door w/Shade Prep & Screenshot Features
- X-Large Folding Grab Handle
- Power Front Jack
- Undermount Spare Tire
- Equa-Flex® Suspension
- Nitrogen Filled Tires
- Battery Disconnect
- Black Tank Flush
- Backup Camera Prep
- Roof Mounted Solar Prep
- All Weather Insulation Package (heated, insulated & enclosed underbelly plus foil in floor, roof, front, rear)
- 2" Towing Receiver Hitch w/4 Pin Wire Harness Connection (3,000 lb. tow rating & 300 lb hitch rating)
- Roof Ladder
- (2) Attic Vents
- Leash Latch w/Bonus Beverage Opener
- Metal Latches on Baggage Doors
Interior
- Luxury Woven Vinyl Flooring in Slideouts (marine grade)
- Maple Glazed Cabinetry
- Glazed Solid Hardwood Slideout Fascia
- Solid Surface Countertops w/Deep Undermount Stainless Steel Kitchen Sink w/Sink Cover
- Trash Can Under Sink
- 24" Oven w/4 Burner Range
- 30" Convection Microwave
- Kitchen Skylight w/Shade
- Power Vent Fan in Main Area
- 36" Pullout Storage Bins in Booth Dinette
- Tri-Fold HAB Sofa
- (3) Motion Sensor Lights (entry, closet, basement)
- 40" Wideview Fireplace
- LED TV
- Multiple Media Stereo w/DVD/Bluetooth/NFC Wireless Connectivity
- 12V Dual USB Charging Station
- Night Roller Shades
- Porcelain Foot Flush Toilet
- Stainless Steel Bathroom Sink
- Plywood Bed Base
- Serta Comfort Foam 70" x 80" King Mattress
- Legless Table Base for Dinette Table & Chairs (select models)
- Pocket Door for Bathroom
- Soft Auto Close Drawer Guides
KZ Convenience Package (Mandatory)
Exterior
- KZ Engage Powered by OneControl w/5" Screen (control system monitors tank levels & battery levels, controls slide rooms, leveling system, awnings, inside/outside lighting & includes TPMS system prep)
- Power Awning w/LED Light Strip
- 16" Tires w/Aluminum Wheels
- Magnetic Catches for Baggage Doors
- Omnidirectional HDTV Antenna w/WiFi Prep
- LED Lights in Exterior Speakers
Interior
- Residential Grade Linoleum
- 12 CU FT Gas/Electric Refrigerator w/Temperature Controls
- Matte Black Residential Kitchen Faucet w/Spring Sprayer
- Surfex Wood Step in FW Hallway
- Interior Control Switches on Overhead End Cabinet w/Convenience Center for Switches
- Wood Accent Trim on Corners/Entry Doors
- Electric Outlet in Bunk Area
- Vision S Prep (blind spot monitoring)
- On-Demand Tankless Water Heater
- Lithium Battery Ready
Bonus Features
- 2-Year Limited Warranty (see flyer)
- Lightest high-profile, wide body, luxury fifth wheels in the industry (average weight is 11,100 LBS)
- KZ has received the Dealer Satisfaction Index Award for 19 years
- KZ’s 48 years of stable, dedicated manufacturing experience, coupled with its predominant Amish workforce, heritage and commitment to superb quality, allow us to produce the best value luxury fifth wheel available.
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
